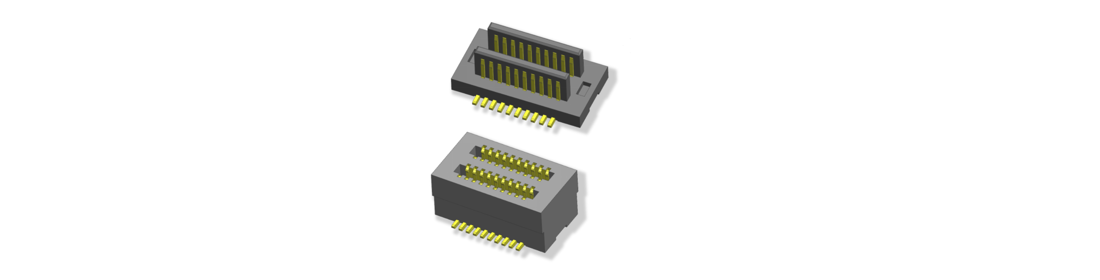

Pitch 0.5mm, H=3.0~8.5mm, 12 kinds of combined height-size board-to-board connectors have been successfully developed and officially put into mass production to meet the requirements of various heights between various types of board customers.

Product Features
• 0.5mm pitch, side width 5.2mm
• Combination height 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm, 7.5mm, 8.0mm, 8.5mm, 12 specifications, for a variety of applications
• Rated current: 0.5A; rated voltage: 60V
• Stable contact reliability and coordination
• Good insertion and removal
